| PN16~40 DIN Non-Rising Stem Gate Valve F15 Series |
| |
 |
PN16～40, DN50～400
Design and manufacture: DIN3352
Face to face: DIN3202-F15, EN558-1
End flange Dimensions: DIN2543(PN16), DIN2544(PN25), DIN2545(PN40), EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers''requirement. |
PN16~40 DIN Non-Rising Stem Gate Valve F15 Series |
|
 |

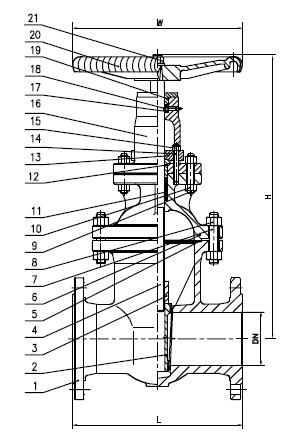

Standard Material Specifications
NO. |
Part Name |
Material |
NO. |
Part Name |
Material |
1 |
Body |
GS-C25+13Cr |
12 |
Gland |
A182 F6 |
2 |
Wedge |
GS-C25+13Cr |
13 |
Gland Flange |
GS-C25 |
3 |
Stem Nut |
A439 D2 |
14 |
Bolt |
A193 B7 |
4 |
Stem |
A182 F6 |
15 |
Nut |
A194 2H |
5 |
Gasket |
SS+Graphite |
16 |
Yoke |
GS-C25 |
6 |
Bonnet |
GS-C25 |
17 |
Bearing |
Steel |
7 |
Bolt |
A193 B7 |
18 |
Split Ring |
A182 F6 |
8 |
Nut |
A194 2H |
19 |
Nut |
1035 |
9 |
Nut |
A194 2H |
20 |
Handwheel |
A536 |
10 |
Bolt |
A193 B7 |
21 |
Nut |
A194 2H |
11 |
Gasket |
SS+Graphite |
22 |
|
|
Dimensions(mm)
PN16 |
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
L |
250 |
270 |
280 |
330 |
360 |
390 |
460 |
530 |
630 |
690 |
750 |
H |
305 |
354 |
402 |
437 |
496 |
541 |
699 |
815 |
914 |
1189 |
1350 |
W |
200 |
200 |
250 |
300 |
300 |
350 |
350 |
400 |
450 |
500 |
550 |
PN25 |
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
L |
250 |
270 |
280 |
330 |
360 |
390 |
460 |
530 |
630 |
690 |
750 |
H |
325 |
363 |
415 |
453 |
505 |
556 |
744 |
864 |
948 |
1269 |
1450 |
W |
200 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
600 |
PN40 |
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
L |
250 |
270 |
280 |
330 |
360 |
390 |
460 |
530 |
630 |
690 |
750 |
H |
325 |
370 |
430 |
480 |
532 |
589 |
783 |
888 |
965 |
1285 |
1512 |
W |
200 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
600 |
|
|
|
