| PN6~PN16 Flanged Type Soft-Seal Butterfly Valve |
| |
|
 |
PN6~PN16 Flanged Type Soft-Seal Butterfly Valve |
1) Standards:
A) Manufacture: GB12238, JB/T8527, API609
B) Face to face/end to end dimensions: ANSI B16. 10, GB12221
C) Pipe flange: JB/T74 90, GB12380, HG20615~20635, SH3006, ANSI B16. 5
D) Testing and inspection: GB/T13927, API598
2) Body materials: CI, DI, WCB, SS
Disc: DI, SS304, SS316, Aluminum Bronze
Split Stem: WCB, SS416, SS304, SS316
Seat: NBR, EPDM, PTFE, VITON
3) Flange drilling: DIN PN10/PN16
BS4504, BS 10D/E
ISO2084, ISO2531
ANSI 125/150, AS2129
ASA125/150
JIS 5K/10K
4) Nominal Diameter: DN100~2000.

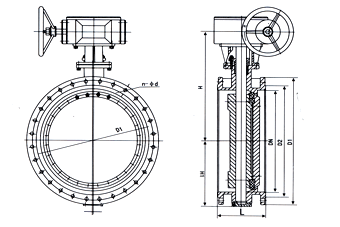

Dimensions
| DN |
L |
D |
D1 |
D2 |
b |
H |
H1 |
n-φd |
| 100 |
120 |
220 |
180 |
158 |
24 |
240 |
120 |
8-φ18 |
| 125 |
130 |
250 |
210 |
184 |
26 |
270 |
130 |
8-φ18 |
| 150 |
140 |
285 |
240 |
212 |
26 |
300 |
150 |
8-φ22 |
| 200 |
150 |
340 |
295 |
268 |
28 |
330 |
180 |
8-φ22 |
| 250 |
250 |
395 |
350 |
320 |
28 |
400 |
220 |
12-φ22 |
| 300 |
270 |
445 |
400 |
370 |
28 |
410 |
220 |
12-φ22 |
| 350 |
290 |
505 |
460 |
430 |
30 |
460 |
270 |
16-φ22 |
| 400 |
310 |
565 |
515 |
482 |
32 |
510 |
290 |
16-φ26 |
| 450 |
330 |
615 |
565 |
532 |
32 |
560 |
320 |
20-φ26 |
| 500 |
350 |
670 |
620 |
585 |
34 |
590 |
360 |
20-φ26 |
| 600 |
390 |
780 |
725 |
685 |
36 |
660 |
390 |
20-φ30 |
| 700 |
430 |
895 |
840 |
800 |
40 |
780 |
460 |
24-φ30 |
| 800 |
470 |
1015 |
950 |
905 |
44 |
850 |
530 |
24-φ33 |
| 900 |
510 |
1115 |
1050 |
1005 |
46 |
920 |
570 |
28-φ33 |
| 1000 |
550 |
1230 |
1160 |
1110 |
50 |
990 |
630 |
28-φ36 |
| 1200 |
630 |
1455 |
1380 |
1330 |
56 |
1115 |
750 |
32-φ39 |
| 1400 |
710 |
1675 |
1590 |
1530 |
62 |
1228 |
850 |
36-φ42 |
| 1600 |
790 |
1915 |
1820 |
1750 |
68 |
1340 |
990 |
40-φ48 |
| 1800 |
870 |
2115 |
2020 |
1950 |
70 |
1570 |
1100 |
44-φ48 |
| 2000 |
950 |
2325 |
2230 |
2160 |
74 |
1680 |
1170 |
48-φ48 |
|
|
|
